Electromatic

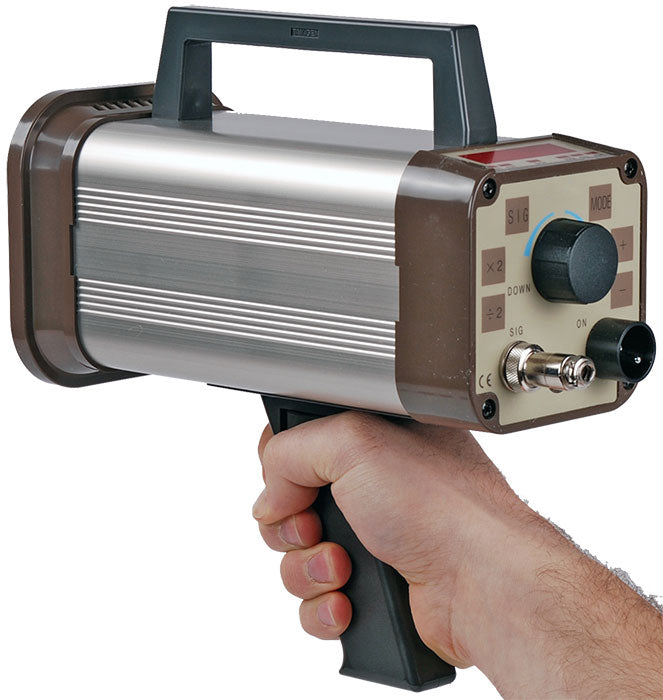

Checkline DT-315A Digital Stroboscope

$0.00

SKU: ELE-DT-315A

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

DISCONTINUED: The DT-315A has been discontinued by Checkline and is no longer available.

Flash Range	40-35,000 FPM
Accuracy	Internal Mode: ±0.01% of reading; External Mode: ±0.01% or ± 1 digit
Resolution	0.1 FPM: 40.0 - 4,999.9 FPM; 0.2 FPM: 5,000 - 7,999.8 FPM; 0.5 FPM: 8,000 - 9,999.5 FPM; 1 FPM: 10,000 - 35,000 FPM
Drift	±0.01% per °C
Update Time	Internal Mode: 0.2 seconds; External Mode: ±0.01% or ± 1 digit
Input Signal	LO level: 0-0.4 VDC; HI level: 2.5 - 12 VDC -- or open collector (npn); pulse width 50us min
Output Signal	Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & Rate	Divide or multiply by 2, selectable
Operating Temperature	32-104 °F (0-40 °C)
Display	5 digits, 10 mm high, red LED
Flashtube	Xenon, 10 W maximum
Flash Duration	10-30 µs
Sensor Power Supply	12 VDC ± 0.5V (50ma)
Power Requirements	Internal Rechargeable battery (NiCad)
Weight	4.4 lbs. (2 kg)
Dimensions	4.7 x 5.6 x 9.7" (120 x 141 x 248 mm)
Warranty	2 Years
Phase Shift	0 - 359° with 1° resolution or; 0 - 333 ms from 200 - 3,000 FPM
Input Impedance	10,000 ohms
