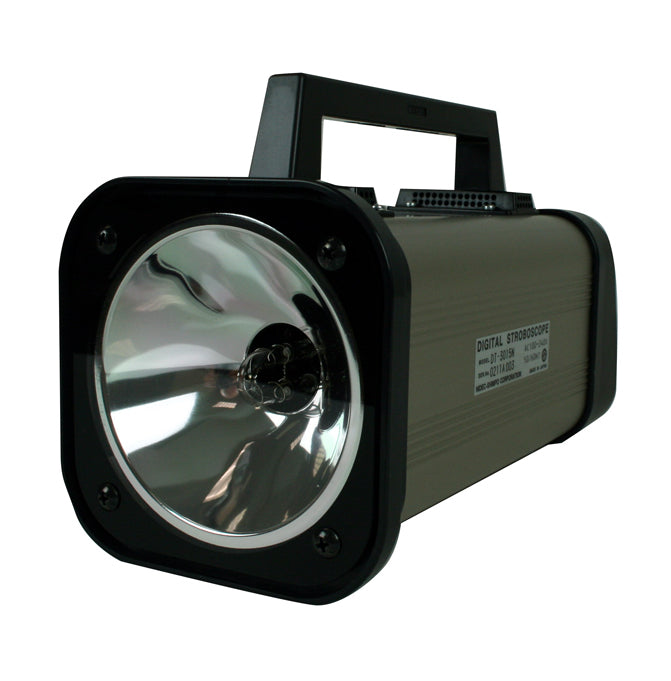

Checkline DT-3015N Portable Xenon Stroboscope with Rechargeable Battery
$1,400.00
SKU: ELE-DT-3015N
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The DT-3015N is a rugged, battery-powered xenon stroboscope for non-contact RPM measurement, inspection and observation of moving parts by visually freezing or slowing their motion. It runs from its internal rechargeable battery or from AC power. Flash range is 40 - 35,000 FPM. Replaces the DT-315A.
Features
- Internal rechargeable battery with fast charging
- Durable aluminum body
- Polished, focused reflector for even illumination
- External trigger input for automatic sync with equipment
- Light auto-off, adjustable from 1 to 120 minutes, to extend battery life
- Phase shift adjustable in degrees or milliseconds for rotating or reciprocating parts
- Stores up to 5 user configurations for quick changeover between machines
- Synchronous output to drive additional strobes
- Optional Euro power cable (IEC-C13-EURO)
- Optional NIST-traceable calibration certificate
Complete Kit
Supplied with the DT-3015N stroboscope, input signal connector, and universal 100-240 V charger adapter with cable. The DT-3015N-KIT adds a carrying case and a spare flash tube.
Specifications
| Flashing Range | 40.0 - 35,000 fpm (flashes per minute) |
|---|---|
| Accuracy | ±0.05 % of reading |
| Resolution | 30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to 35000.0 : 1.0 fpm |
| Lux Rating | 8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter.; 20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter. |
| Lamp Lifetime | Typ.1200 hours at 1500 fpm |
| Display | 6-digit, 7 segment red LED |
| Flash Duration | 30 μsec |
| Phase Shift | 0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution |
| Battery Charger | 100 to 240 VAC 50/60Hz (included) |
| Battery | NiMH battery- Approximate 2 hour time to full charge |
| Battery Life | Approx. 3 hours (when the emission count is 1500 FPM) |
| Input Signal | H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more Input impedance : 10 kΩ or more |
| Input Signal Range | 27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec |
| Sensor Power Supply | DC 12 VDC 40 mA |
| Temperature Limits | 32 to 104°F (0 to 40°C) |
| Humidity Limits | 35 to 85% RH (Non- condensing) |
| Product Weight | 4.2 lbs (1.9 kg) |
| Approvals | CE / RoHS |
| Warranty | 1-Year |
