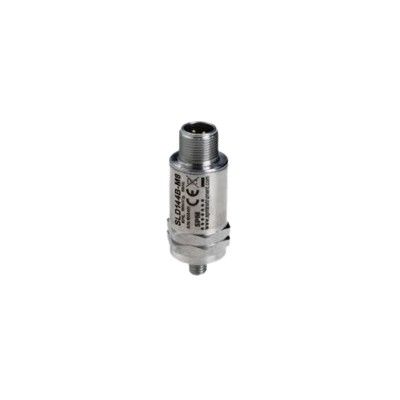

SPM SLD144TB Vibration Transducer, 2-10 kHz, 100 mV/g
The SPM SLD144TB is a piezo-electric compression-type accelerometer with built-in electronics, designed for vibration monitoring of industrial machinery. It has a 100 mV/g sensitivity, a linear frequency range of 2 Hz to 10 kHz, and a top-entry 2-pin MIL-C-5015 connector. The electrical signal is isolated from the stainless steel housing.
The transducer is installed on a flat machine surface through an M8 tapped hole, so a mounting stud is required (sold separately). For 1/4"-28 UNF mounting holes, use the SPM 18179 thread adapter. Other studs are available for M6 (18177), M10 (18178) and M8 (18180) holes.
- 100 mV/g sensitivity, 2 Hz to 10 kHz (±1 dB)
- Top-entry 2-pin MIL-C-5015 connector
- Case isolated (>10 MΩ), IP66/67 acid-proof stainless steel
- Operating temperature –40 to +125 °C (–40 to +257 °F)
- Cable runs up to 100 m (328 ft)
Complete Kit
- 1 x SLD144TB vibration transducer
- Calibration chart with individual sensitivity value
Specifications
| Sensitivity | 10 mV/m/s² = 100 mV/g (individual value on calibration chart) |
|---|---|
| Linear Frequency Range | 2 Hz to 10 kHz (±1 dB) |
| Bias (typical) | 10 to 13 V (12 V) |
| Max. Peak Acceleration | 600 m/s² = 60 g |
| Transverse Sensitivity | Max. 10 % |
| Base Strain Sensitivity | 0.01 m/s²/µ strain typical |
| Settling Time | 3 sec |
| Power Requirements | 24 V, 2 to 5 mA |
| Isolation | Case isolated, >10 MΩ |
| Connector | TB = 2-pin MIL-C-5015, top entry |
| Cable Length | Max. 100 m (328 ft) |
| Cable Capacitance | 210 pF/m |
| Operating Temperature | –40 to +125 °C (–40 to +257 °F) |
|---|---|
| Sealing | IP66/67 |
| Casing | Stainless acid-proof steel, Sandvik 1802, EN 1.4523 |
|---|---|
| Mounting Thread | M8, tapped hole (mounting stud required) |
| Torque Limit | 10 Nm (7.4 lbf·ft) |
| Wrench Size | 24 mm |
| Weight | Approx. 110 g (4 oz) |
| Mounting Studs | 18177 M8-M6, 18178 M8-M10, 18179 M8-1/4"-28 UNF, 18180 M8-M8 |
|---|---|
| Installation Tools | 81027 counterbore holder, 81057 counterbore 20 mm, 81030 pilot M6/UNF, 81031 pilot M8, 81033 pilot M10 |
| Country of Origin | Sweden |
|---|---|
| Technical Data Sheet | TD-635 |
