SKF Standard Hookspanner Ordering Page
SKF Industrial Division

SKF Standard Hookspanner Ordering Page

$35.87
SKU: SKF-HN 0
Title
Qty
Request a Quote
✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

Exact spanner radius reduces the risk of nut damage

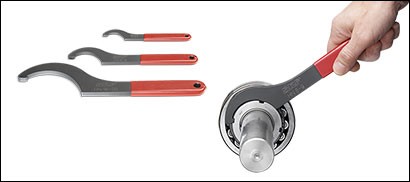

The HN series Hookspanners include 15 different size hook spanners based on the DIN 1810 standard. The hook spanners are designed for use with SKF KM nuts as well as any other KM nuts conforming to the DIN 981 standard. Additionally, they are suitable for use with N, AN, KMK, KMFE and KMT as well as nuts manufactured according to the DIN 1804 standard.

  • Suitable for use in wide variety of applications
  • Minimizes the risk of shaft and nut damage
  • Plastic handle is oil, grease and dirt resistant to provide a better grip
  • The plastic handle minimizes direct metal to skin contact, reducing the risk of corrosion in the handle area
  • Hole in the spanner's handle facilitates easy storage
  • Designation of spanner size is laser-engraved allowing easy identification and selection

Technical Data:

  • Material: Special hardened steel
  • Material Handle: PVC
  • Suitable:
    • For many SKF nuts
    • For all KM nuts according to DIN 981
    • For all nuts according to DIN 1804
    • For nuts from KM0 (Ø18) to KM22 (Ø145)

Hookspanner Selection and Specifications:

Suitable for SKF nuts of series:
KM N AN KMK KMFE KMT DIN 1804 (M)
HN 0 0 0 0 M6x0.75,
M8x1
HN 1 1 1 1 M8x1
HN 2-3 2,
3		 2,
3		 2,
3		 0 M10x1,
M12x1.5
HN 4 4 4 4 4 1,
2		 M14x1.5,
M16x1.5
HN 5-6 5,
6		 5,
6		 5,
6		 5,
6		 3,
4,
5		 M22x1.5,
M24x1.5,
M26x1.5
HN 7 7 7 7 7 6,
7		 M32x1.5,
M35x1.5
HN 8-9 8,
9		 8, 9 8,
9		 8,
9		 8 M38x1.5,
M40x1.5,
M42x1.5
HN 10-11 10,
11		 10,
11		 10,
11		 10,
11		 9,
10		 M45x1.5,
M48x1.5,
M50x1.5
HN 12-13 12,
13		 12,
13		 12,
13		 12,
13		 11,
12		 M52x1.5,
M55x1.5,
M58x1.5,
M60x1.5
HN 14 14 14 14 14
HN 15 15 15 15 15 13,
14		 M62x1.5,
M65x1.5,
M68x1.5,
M70x1.5
HN 16 16 16 16 16 15
HN 17 17 17 17 17 16 M72x1.5,
M75x1.5,
M80x2
HN 18-20 18,
19,
20		 18,
19,
20		 18,
19,
20		 18,
19,
20		 17,
18,
19		 M85x2,
M90x2
HN 21-22 21,
22		 21,
22		 21,
22		 20,
22		 M95x2,
M100x2
DIN 1810 Diameter Working
length		 Thickness Weight
mm mm mm mm g
HN 0 16 - 20 100 3 24
HN 1 Ø20 - Ø22 20 - 22 100 3 25
HN 2-3 Ø25 - Ø28 25 - 28 120 4 48
HN 4 Ø30 - Ø32 30 - 32 120 4 48
HN 5-6 38 - 45 150 5 96
HN 7 Ø52 - Ø55 52 - 55 180 6 170
HN 8-9 58 - 65 210 7 270
HN 10-11 Ø68 - Ø75 68 - 75 210 7 270
HN 12-13 Ø80 - Ø90 80 - 90 240 8 420
HN 14 92 240 8 415
HN 15 Ø95 - Ø100 95 -100 240 8 405
HN 16 105 240 8 412
HN 17 Ø110 - Ø115 110 - 115 280 10 753
HN 18-20 Ø120 - Ø130 120 - 130 280 10 752
HN 21-22 Ø135 - Ø145 135 - 145 320 12 1210
DIN 1810 Diameter Working
length		 Thickness Weight
mm in in in lb
HN 0 0.6 - 0.8 3.9 0.12 0.05
HN 1 Ø20 - Ø22 0.8 - 0.9 3.9 0.12 0.06
HN 2-3 Ø25 - Ø28 1.0 - 1.1 4.7 0.16 0.11
HN 4 Ø30 - Ø32 1.2 - 1.3 4.7 0.16 0.11
HN 5-6 1.5 - 1.8 5.9 0.20 0.21
HN 7 Ø52 - Ø55 2.0 - 2.2 7.1 0.24 0.37
HN 8-9 2.3 - 2.6 8.3 0.28 0.60
HN 10-11 Ø68 - Ø75 2.7 - 3 8.3 0.28 0.60
HN 12-13 Ø80 - Ø90 3.1 - 3.5 9.4 0.31 0.93
HN 14 3.6 9.4 0.31 0.91
HN 15 Ø95 - Ø100 3.7 - 3.9 9.4 0.31 0.89
HN 16 4.1 9.4 0.31 0.91
HN 17 Ø110 - Ø115 4.3 - 4.5 11.0 0.39 1.66
HN 18-20 Ø120 - Ø130 4.7 - 5.1 11.0 0.39 1.66
HN 21-22 Ø135 - Ø145 5.3 - 5.7 12.6 0.47 2.67
