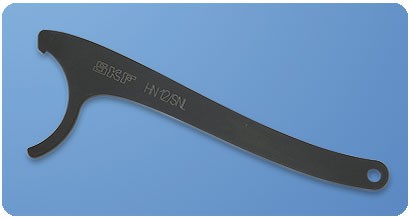

SKF SNL Hookspanner
SKF Industrial Division

SKF SNL Hookspanner

$65.31
SKU: SKF-HN 10/SNL
Title
Qty
Request a Quote
✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

Easy and quick bearing mounting and dismounting in SNL housings

The hook spanners of HN /SNL series are especially designed to facilitate easy and quick mounting and dismounting of bearings with tapered bore on adapter sleeve in SKF SNL bearing housings. They are also suitable for tightening and loosening a wide variety of lock nuts in both housing and shaft applications. The HN /SNL series consists of 16 sizes suitable for nut outer diameter ranging from 38 to 145 mm (1.5 to 5.7 in). The spanners are made of hardened high quality chrome vanadium steel for durability.

  • Unique, special design allows the HN /SNL series to be used inside SKF SNL and SNH bearing housings
  • Suitable for tightening and loosening KM, KML, N, AN, KMK, KMFE and KMT lock nuts, facilitating the use in a wide range of housing and shaft applications
  • The large contact area of the spanner around the nut provides excellent grip
  • Exact fit reduces the risk shaft, nut and housing damage
  • Designation is laser-engraved on the handle allowing easy identification and selection.
  • Additional five larger sizes for nut outer diameter 155 to 210 mm (6.1 to 8.3 in) are available upon request.
  • Easy storage due to hole in handle for hanging up.

Technical Data:

  • Material: Black phosphated, hardened chrome vanadium steel
  • Suitable for SKF SNL and SNH housings KM, KML, N, AN, KMK, KMFE and KMT nuts

Specifications and Selection:

d - Outer Diameter locknut L- Working Length n - Thickness Weight
mm in mm in mm in g lb
HN 5/SNL 38 1.50 175 6.9 5 0.20 100 0.22
HN 6/SNL 45 1.77 210 8.3 6 0.24 176 0.39
HN 7/SNL 52 2.05 210 8.3 6 0.24 180 0.40
HN 8/SNL 58 2.28 245 9.6 7 0.28 280 0.62
HN 9/SNL 65 2.56 245 9.6 7 0.28 295 0.65
HN 10/SNL 70 2.76 245 9.6 7 0.28 310 0.68
HN 11/SNL 75 2.95 245 9.6 7 0.28 330 0.73
HN 12/SNL 80 3.15 280 11.0 8 0.31 455 1.00
HN 13/SNL 85 3.35 280 11.0 8 0.31 484 1.07
HN 15/SNL 98 3.86 280 11.0 8 0.31 490 1.08
HN 16/SNL 105 4.13 325 12.8 10 0.39 780 1.72
HN 17/SNL 110 4.33 325 12.8 10 0.39 826 1.82
HN 18/SNL 120 4.72 325 12.8 10 0.39 826 1.82
HN 19/SNL 125 4.92 325 12.8 10 0.39 865 1.91
HN 20/SNL 130 5.12 325 12.8 10 0.39 875 1.93
HN 22/SNL 145 5.71 375 14.8 12 0.47 1260 2.78

Special Sizes:

d - Outer Diameter Locknut L- Working Length n - Thickness Weight
mm in mm in mm in g lb
HN 24/SNL 155 6.10 375 14.8 12 0.47 1352 2.98
HN 26/SNL 165 6.50 375 14.8 12 0.47 1395 3.08
HN 28/SNL 180 7.09 445 17.5 14 0.55 2175 4.80
HN 30/SNL 195 7.68 445 17.5 14 0.55 2281 5.03
HN 32/SNL 210 8.27 445 17.5 14 0.55 2486 5.48

Selection Chart:

Suitable for
SKF housings		 Suitable for
SKF nuts of series
SNL KM KML N* AN* KMK* KMFE* KMT*
HN 5/SNL 505, 506-605 5 5 5 5 5
HN 6/SNL 506-605, 507-606 6 6 6 6 6
HN 7/SNL 507-606, 508-607 7 7 7 7 7
HN 8/SNL 508-607, 510-608 8 8 8 8 8
HN 9/SNL 509, 511-609 9 9 9 9 9
HN 10/SNL 510-608, 512-610 10 10 10 10 10
HN 11/SNL 511-609, 513-611 11 11 11 11 11
HN 12/SNL 512-610, 515-612 12 12 12 12 12
HN 13/SNL 513-611, 516-613 13 13 13 13 13
HN 15/SNL 515-612, 518-615 15 15 15 15 15
HN 16/SNL 516-613, 519-616 16 16 16 16 16
HN 17/SNL 517, 520-617 17 17 17 17 17
HN 18/SNL 518-615 18 18 18 18 18
HN 19/SNL 519-616, 522-619 19 19 19 19 19
HN 20/SNL 520-617, 524-620 20 20 20 20 20
HN 22/SNL 522-619 22 24 22 22 22
* Not recommended in combination with SNL/SNH housing

Special Sizes:

Suitable for SKF housings Suitable for SKF nuts of series
SNL KM KML AN* KMFE* KMT*
HN 24/SNL 524-620 24 26 24 24 24
HN 26/SNL 526 26 28 26 26
HN 28/SNL 528 28 30 28
HN 30/SNL 530 30 32 30 32
HN 32/SNL 532 32
* Not recommended in combination with SNL/SNH housing

Contact us at (214) 238-0493 for full specifications.
