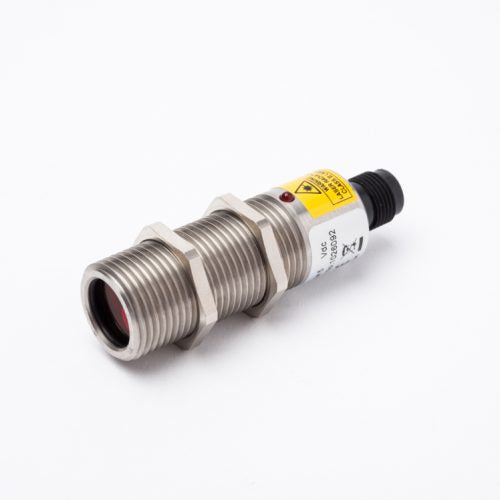

MiniVLS Laser Speed Sensors with NPN Pulse Output

MiniVLS Optical Laser Speed Sensors are designed for high-speed RPM measurement. They are housed in either a rugged stainless steel enclosure that is sealed to IP67 standard or in an economical plastic body. They are engineered for compatibility: both a threaded body and a plain body are available, along with an optional mounting bracket. These Optical Laser Sensors can be used with almost any pulse input monitoring equipment including portable, panel-mounted, and bench-style instruments.

Ordering Guide

Model	Input Voltage	Housing Type	Housing Material	Connector	Optical Range	Speed Range	Power Input	Signal Input	Operating Temperature	IP Rating	Dimensions	Image
MiniVLS 111	5 DC	Threaded w/ Lock Nuts	Stainless Steel	M12 4-pin	100mm - 2000mm	0.1 - 250,000 rpm	5vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 112	8-24 DC	Threaded w/ Lock Nuts	M12 4-pin	Stainless Steel	100mm - 2000mm	0.1 - 250,000 rpm	8-24vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 113	6-12 DC	Threaded	Stainless Steel	M12 4-pin	100mm - 2000mm	0.1 - 250,000 rpm	6-12vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 211	5 DC	Plain	Stainless Steel	M12 4-pin	100mm - 2000mm	0.1 - 250,000 rpm	5vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 212	8-24 DC	Plain	Stainless Steel	M12 4-pin	100mm - 2000mm	0.1 - 250,000 rpm	8-24vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 213	6-12 DC	Plain	Stainless Steel	M12 4-pin	100mm - 2000mm	0.1 - 250,000 rpm	6-12vdc versions @ 30 mA typically	NPN open collector	-10° / +40°C	IP67	D 20mm x L 70mm
MiniVLS 311	5 DC	Plain	Plastic	Bare Leads	100mm - 2000mm	0.1 - 100,000 rpm	5vdc versions @ 30 mA typically	NPN 3K9 Pull-Up	-10° / +40°C	N / A	D 22mm x L 65mm
MiniVLS 311/001	5 DC	Plain	Plastic	TRS Mini	100mm - 2000mm	0.1 - 100,000 rpm	5vdc versions @ 30 mA typically	NPN 3K9 Pull-Up	-10° / +40°C	N / A	D 22mm x L 65mm
MiniVLS 311/003	5 DC	Plain	Plastic	5-pin DIN	100mm - 2000mm	0.1 - 100,000 rpm	5vdc versions @ 30 mA typically	NPN 3K9 Pull-Up	-10° / +40°C	N / A	D 22mm x L 65mm
MiniVLS 311/004	5 DC	Threaded w/ Lock Nuts	Plastic	7-pin Fischer	100mm - 2000mm	0.1 - 100,000 rpm	5vdc versions @ 30 mA typically	NPN 3K9 Pull-Up	-10° / +40°C	N / A	D 22mm x L 65mm
MiniVLS 312	5 DC	Threaded w/ Lock Nuts	Plastic	Bare Leads	100mm - 2000mm	0.1 - 100,000 rpm	5vdc versions @ 30 mA typically	NPN 3K9 Pull-Up	-10° / +40°C	N / A	D 24mm x L 65mm
							Resolution
MiniVLS 313	USB Specification	Plain	Plastic	USB - 115,200 baud	50mm - 2000mm	3 - 99,999 rpm	0.001 rpm	N / A	0° / +50°C	N / A	D 20mm x L 65mm
