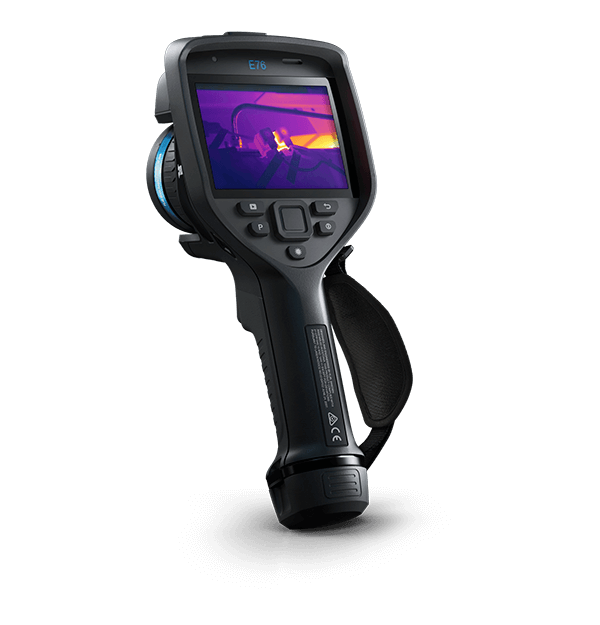

FLIR E76 Advanced Thermal Imaging Camera
$9,100.00
SKU: FLIR-78512-1101
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The Teledyne FLIR E76 Advanced Thermal Imaging Camera, MSX and UltraMax Technologies, 320 x 240, 30 Hz offers complete coverage of near and distant targets through a range of interchangeable lens options. Pair it with a FLIR FlexView dual field of view lens to switch from wide-area to telephoto scanning with one press of a button. A step up from the FLIR E54, the E76 adds laser-assisted autofocus and 3 area measurement boxes, while its 320 x 240 pixel thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations, and FLIR Ignite provides automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing.
- Lens kits: choose a single 14°, 24°, 42° or 80° lens, a two- or three-lens kit, or a FlexView dual field of view lens (14°/24° or 24°/42°). The 24° lens is often considered the "standard" lens; its 24° x 18° field of view lets users stay at a safe distance from energized equipment while still obtaining crisp focus on smaller targets
- Laser-assisted autofocus with 3 area measurement boxes
- Interchangeable, auto-calibrating FLIR AutoCal lenses (14°, 24°, 42° and 80° available)
- Field of view: 14° x 10° (14°), 24° x 18° (24°), 42° x 32° (42°), 80° x 63° (80°)
- Display: 4 in., 640 x 480 pixel touchscreen LCD with auto-rotation
- FLIR Inspection Route: Enabled in camera
- Laser pointer: Yes
- Viewfinder: No
- Text: Predefined list or touchscreen keyboard
- Time lapse: 10 seconds to 24 hours (infrared)
- Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Communication interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- METERLiNK: Yes
- Storage media: Removable SD card
- Video out: DisplayPort over USB Type-C
- Operating temperature range: -15 to 50°C (5 to 122°F)
- Safety: EN/UL/CSA/PSE 60950-1
- Storage temperature range: -40 to 70°C (-40 to 158°F)
- Color palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector type and pitch: Uncooled microbolometer, 17 µm
- Digital camera: 5 MP, with built-in LED photo/video lamp (disabled when the 80° lens is in use)
- Digital zoom: 1-4x continuous; 1-8x continuous with the 80° lens or a FlexView dual field of view lens
- f-number: 1.5 (14°), 1.3 (24° and 80°), 1.1 (42°)
- Focal length: 29 mm (14°), 17 mm (24°), 10 mm (42°), 5 mm (80°)
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image frequency: 30 Hz
- IR resolution: 320 x 240 pixels
- Lens identification: Automatic
- Minimum focus distance: 0.15 m (24° and 42°), 1.0 m (14°)
- Minimum focus distance with MSX: 0.5 m / 1.64 ft (24°), 0.65 m / 2.13 ft (42°), 1.0 m / 3.28 ft (14°)
- Spatial resolution (IFOV): 0.75 mrad/pixel (14°), 1.31 mrad/pixel (24°), 2.41 mrad/pixel (42°), 5.2 mrad/pixel (80°)
- Non-Radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture: Resizable and movable
- Radiometric IR video recording: Real-time radiometric recording (.csq)
- Radiometric IR video streaming: Yes, over UVC
- Spectral range: 7.5-14 µm
- Thermal sensitivity/NETD at 30°C (86°F): <50 mK (14°), <40 mK (24° and 80°), <30 mK (42°)
- UltraMax: Yes
- Accuracy: ±2°C (±3.6°F) or ±2% of reading
- Measurement Presets: No Measurement, Center Spot, Hot Spot, Cold Spot, User Preset 1, User Preset 2
- Object temperature range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option
- Spot meter: 3 ea. in live mode
- Battery operating time: >2.5 hours at 25°C (68°F) and typical use
- Battery type: Rechargeable Li-ion battery
- Image file format: Standard JPEG with measurement data included; infrared-only mode
- Image storage mode: Infrared, Visual, MSX, Picture-in-Picture, Gallery
- Package includes: Infrared camera with the lens or lenses of the selected kit, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), FLIR Thermal Studio Starter license card
