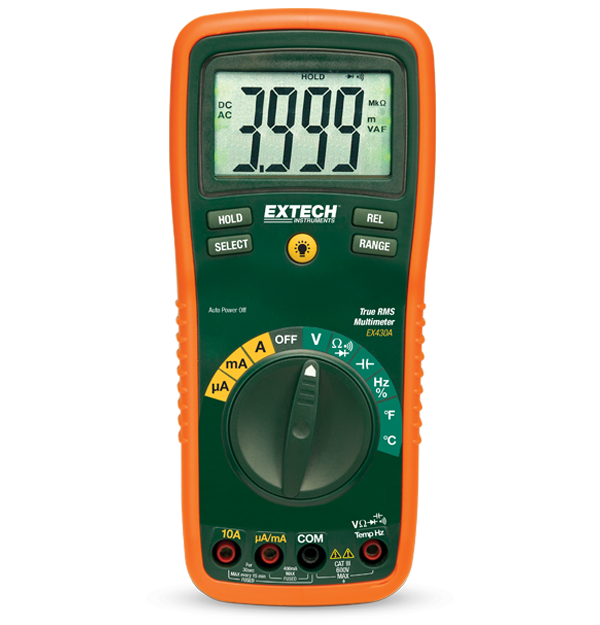

Extech EX430A True RMS Autoranging Multimeter
$114.00
SKU: EXT-EX430A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The Extech EX430A is a professional-grade True RMS autoranging multimeter with 11 functions. It measures AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MΩ, continuity and diode test, and includes a Type K thermometer for contact or air temperature measurements from -4 to 1382°F (-20 to 750°C). Advanced functions include capacitance, frequency and duty cycle.
The EX430A replaces the discontinued Extech EX430.
Features
- True RMS AC measurements with autoranging
- 11 functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Type K temperature, diode test and continuity
- 0.3% basic DC voltage accuracy
- Low current capability – measures down to 0.1 µA
- Large backlit 4,000 count LCD with easy-to-read 1" digits
- Relative function, data hold and auto power off
- Input fuse protection and audible/visual mis-connection warning
- CAT III 600 V safety rating
Complete Kit
- EX430A True RMS multimeter
- CAT III test leads
- Type K bead wire temperature probe
- Protective holster with test lead holder
- Multi-position tilt stand
- Velcro hanging strap
- 9 V battery
Specifications
General
| Display | 4,000 count backlit LCD, 1" digits |
|---|---|
| True RMS | Yes |
| Basic accuracy (DC voltage) | ±0.3% |
| Input impedance | >7.5 MΩ (VDC & VAC) |
| ACV bandwidth | 50 Hz to 1 kHz |
| Measurement rate | 2 times per second, nominal |
| Auto power off | 15 minutes (approx.) |
Measurement Ranges
| DC voltage | 0.1 mV to 600 V |
|---|---|
| AC voltage | 0.1 mV to 600 V |
| DC current | 0.1 µA to 10 A |
| AC current | 0.1 µA to 10 A |
| Resistance | 0.1 Ω to 40 MΩ |
| Capacitance | 0.01 nF to 100 µF |
| Frequency | 0.001 Hz to 10 MHz |
| Duty cycle | 0.1 to 99.9% |
| Temperature (Type K) | -4 to 1382°F (-20 to 750°C) |
| Diode test | 0.3 mA max. test current, 1.5 V DC open circuit |
| Continuity | Audible signal below approx. 150 Ω |
Power & Protection
| Battery | One 9 V (NEDA 1604) |
|---|---|
| Fuses | 500 mA/600 V and 10 A/600 V ceramic fast blow |
| Safety | IEC 61010-1, CAT III 600 V, Pollution Degree 2 |
| Certifications | CE |
Environmental
| Operating temperature | 41 to 104°F (5 to 40°C) |
|---|---|
| Storage temperature | -4 to 140°F (-20 to 60°C) |
| Operating humidity | Max. 80% up to 87°F (31°C), decreasing linearly to 50% at 104°F (40°C) |
| Operating altitude | 7000 ft (2000 m) max. |
Physical
| Dimensions | 7.36 × 3.2 × 2.0 in (187 × 81 × 50 mm), including holster |
|---|---|
| Weight | 0.75 lb (342 g), including holster |
