Electromatic

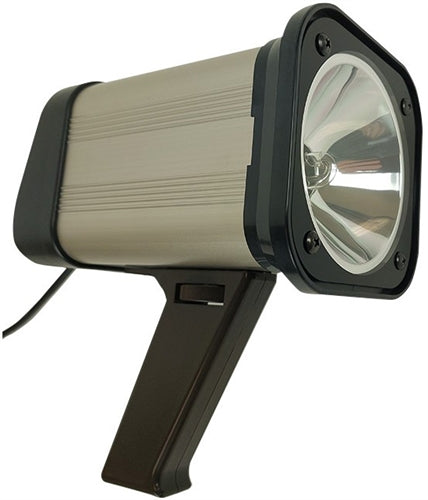

DT-3011N Heavy Duty, AC Powered Stroboscope

$1,150.00

SKU: ELE-DT-3011N

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

The DT-3011N heavy duty, AC powered stroboscope

provides the illusion of “stopped motion”.

By adjusting the flash rate, systems in motion appear to

be standing still or in slow motion. These strobes can measure

rotational (RPM) or reciprocating (strokes per minute) speeds

with the same precision as an electronic digital tachometer. Ideally

suited for printing inspection, motion analysis, preventive

maintenance and speed measurement of repetitive motion, DT-

3011N strobes provide timely data on vibrating parts, leaks, spray

patterns and a variety of industrial and scientific operations. The

DT-3011N stroboscope is extremely easy to maneuver and operate

via its lightweight, compact design combined with a simplified

user interface. Its rugged metal construction provides unequaled

reliability in the harshest environments.

DT-3011N stroboscope, input signal connector

Range	30.0 - 35,000 fpm (flashes per minute)
Accuracy	±0.05 % of reading
Resolution	30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to 35000.0 : 1.0 fpm
Lux Rating	8” (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8” (203 mm) irradiation diameter. 20” (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12” (305 mm) irradiation diameter.
Lamp Lifetime	Typ.1200 hours at 1500 fpm
Display	6-digit, 7 segment red LED
Flash Duration	20 μsec
Phase Shift	0 to 359 ̊ set by 0.1 ̊ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Requirement	100 to 115 VAC +/-10% 50/60 Hz; -EU: 200 to 240 VAC 50/60 Hz
Input Signal	H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50μs or more. Input impedance : 10 kΩ or more
Input Signal Range	27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply	DC 12 VDC 40 mA
Temperature Limits	32 to 104°F (0 to 40°C)
Humidity Limits	35 to 85% RH (Non- condensing)
Product Weight	2.6 lb (1.2 kg)
Package Weight	5.7 lb (2.6 kg)
Approvals	RoHS
Warranty	1-Year
Included Accessories	Input Signal Connector
