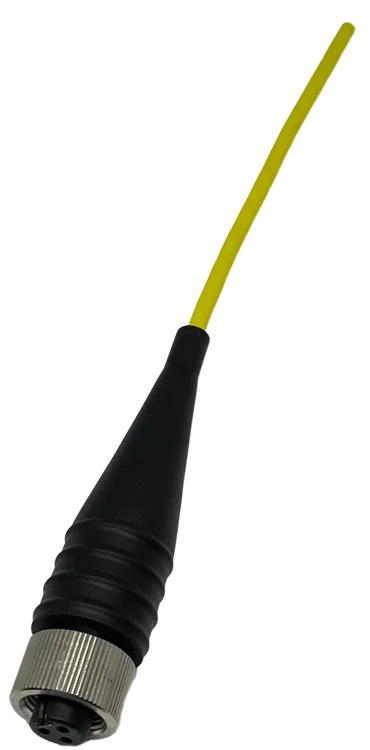

CMCP603H High Temperature, 3 Pin Accelerometer Extension Cables

• High Temperature Cable Assembly

• 3 Socket MIL-C 5015 Style Connector

• Oil and UV Resistant FEP Jacketed Cable
• IP68 Locking Collar (Twist On) Connector

• Viton Strain Relief Boot
• -67 to +392 Deg. F (-55 to +200 Deg. C)

• 3 Conductors (White+Black+Red)
• Overall Braided Shield With Drain Wire

• Case Isolated and Non-Isolated Versions Available
• Lifetime Warranty


The CMCP603H Series High Temperature Accelerometer Extension Cables are designed for use with piezoelectric accelerometers featuring a 3 Pin Mil Spec MS 5015 connector (standard 3 pin connector). The CMCP603H Series cables utilize a low noise cable with an overall braided copper shield to maximize the signal quality of the sensor. The overall yellow FEP jacket provides excellent temperature, chemical and sunlight protection while also providing the flexibility required to extend the life of the cable assembly. Each cable assembly is fitted with a 3 Socket MS 5015 connector that is fully encapsulated with epoxy to ensure water resistance. The CMCP603H cable assemblies are available in both Isolated (for grounding at instrument end) and Non-Isolated (for grounded at the sensor end) versions. The North American standard is Isolated.
