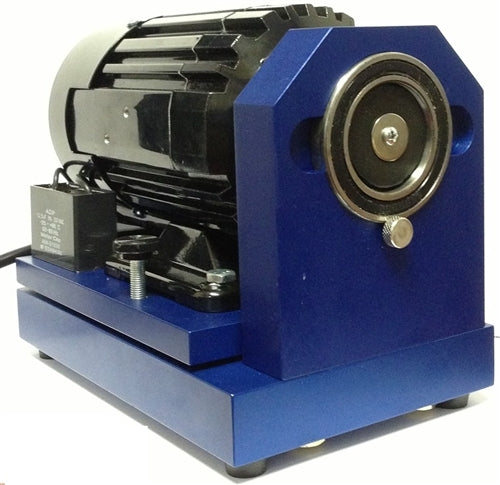

CMCP600 Bearing Fault Demonstrator
The STI CMCP600 Bearing Fault Demonstrator is designed to demonstrate vibration measurement techniques that illustrate bearing fault analysis in rolling element bearings. Simple to use, the CMCP600 provides fast, reliable and repeatable results. The included fault bearing has a 0.004" outer race flaw.
Accelerometers easily mount to the bearing housing for desktop demonstration of data collection and vibration analysis techniques. Excellent for displaying demodulation or Acceleration Enveloping vibration analysis.
Available for 110 Vac, 60 Hz (1,700 RPM) or 220 Vac, 50 Hz (1,400 RPM) power.
Features:
- Demonstrates Demodulation (Acceleration Enveloping)
- 110 Vac, 60 Hz, 1,700 RPM AC motor or 220 Vac, 50 Hz, 1,400 RPM AC motor
- Quick, easy bearing change-out
- Fast and repeatable results
- (2) bearings: (1) "Good" bearing and (1) "Fault Induced" bearing
- Hard carrying case
Complete Kit Includes:
- CMCP600 Bearing Fault Demonstrator with AC motor (voltage as selected)
- (1) "Good" bearing
- (1) "Fault Induced" bearing (0.004" outer race flaw)
- Hard carrying case
Specifications
| Motor | 1/9 HP, 1.4 Amps, CE Approved |
|---|---|
| Power Options | 110 Vac, 60 Hz, 1,700 RPM (CMCP600-01) or 220 Vac, 50 Hz, 1,400 RPM (CMCP600-02) |
| Fault Bearing | 0.004" outer race flaw |
| Dimensions | 5" W x 7-3/4" L x 7" H (12.7 x 19.7 x 17.8 cm) |
| Weight | 23 lbs. (10.4 kg) |
