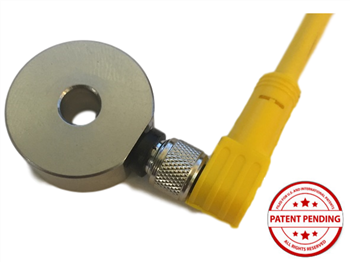

CMCP200ET Accelerometer Mounting Pad with Electronic Temperature

The CMCP200ET Electronic Temperature Mounting Pad makes it easy to add a temperature measurement to an existing accelerometer installation. It works for both new installations and retrofits. The center clearance hole for a 1/4"-28 UNF stud lets you position the cable exit where it works best.

For standalone temperature monitoring, prepare the surface as you would for an accelerometer and epoxy or bolt the pad to the bearing housing. For use under an accelerometer, use a 1" long 1/4"-28 UNF stud and the accelerometer acts as the nut.

Available without a cable or with a 5 m, 10 m or 20 m cable assembly. Mating cable: CMCP603C.

Features

• 0 to 100 °C (32 to 212 °F) range
• 10 mV/°C output
• 0.5 °C accuracy
• Wiring: Blue/Common, Black/Signal, Brown/Power
• 4.0 to 30.0 VDC power
• 3-pin M8 male connector
• 1" diameter x 0.40" high
• Through hole for 1/4"-28 stud or bolt
• 16 RMS finish on one side

Typical Applications

Fans, motors, pumps, compressors, centrifuges, conveyors, air handlers, gearboxes, rolls, dryers, presses, HVAC, spindles, machine tools and process equipment.
