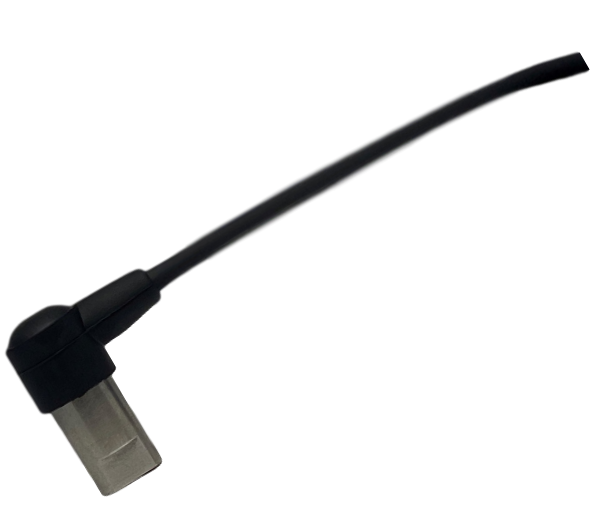

The CMCP1100S 100 mV/g side-exit accelerometer with 5, 10 or 20 meter integral cable is manufactured in house by STI to high quality standards. Each accelerometer is fully enclosed in a potted and waterproof stainless steel case, and its low-profile side cable exit fits where a top-exit sensor will not. CMCP1100S accelerometers in the three standard cable lengths are kept in stock for quick delivery; other cable lengths are custom made to your specifications. 1/4" x 28 UNF mounting stud included. Optional female or male BNC connector.
Features:
- Side Cable Exit
- 100 mV/g ±10% (IEPE)
- 0.32 Hz to 10 kHz Frequency Range (± 3 dB)
- ±50 g Peak Dynamic Range
- Waterproof (Epoxy Sealed)
- Compact Size, 1/2" Dia. x 1.38" H
- 316L Stainless Steel Case
- UV and Oil Resistant Integral TPE Cable
- -65 to +185 °F (-54 to +85 °C) Operating Range
Specifications
Dynamic Performance
| Sensitivity (±10%) | 100 mV/g (10.2 mV/(m/s²)) |
|---|
| Measurement Range | ±50 g (±490 m/s²) |
|---|
| Frequency Range (±3 dB) | 0.32 Hz to 10 kHz (19.2 to 600,000 CPM) |
|---|
| Frequency Range (±10%) | 1.5 Hz to 8 kHz (90 to 480,000 CPM) |
|---|
| Mounted Base Resonance | >25 kHz |
|---|
| Transverse Sensitivity | <5% |
|---|
Environmental
| Operating Temperature Range | -65 to +185 °F (-54 to +85 °C) |
|---|
| Maximum Shock | 7,000 g pk (68,670 m/s² pk) |
|---|
| Sealing | Epoxy encapsulated, waterproof |
|---|
Electrical
| Supply Voltage | 18 to 28 VDC |
|---|
| Constant Current Excitation | 2 to 20 mA |
|---|
| Output Bias Voltage | 8 to 12 VDC |
|---|
| Output Impedance | <100 ohms |
|---|
| Case Isolation | >10⁸ ohms at 500 V |
|---|
| Settling Time | 2.5 sec |
|---|
| Electrical Noise | 0.1 mg max (0.98 mm/s² max) |
|---|
Mechanical
| Case Material | Stainless steel |
|---|
| Sensing Element | PZT / shear |
|---|
| Mounting | 1/4-28 UNF stud |
|---|
| Mounting Torque | 5.9 ft-lb (8 N·m) |
|---|
| Cable Exit | Side exit |
|---|
| Weight (with 5 m cable) | 2.5 oz (70.7 g) |
|---|
| Cable Jacket | TPE, UV and oil resistant |
|---|
| Cable Lengths | 16, 32 or 64 ft (5, 10 or 20 m) |
|---|
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
|---|
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
|---|
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
|---|
| International | Shipping fees do not include taxes, tariffs or duties |
|---|
Returns
| Return window | 7 calendar days from delivery. Contact us before returning any item. |
|---|
| Condition | New, unaltered and unused. Special and custom orders are not returnable. |
|---|
| Restocking fee | 15% on non-defective items that are not being exchanged |
|---|
| Full policy | Refund / Return Policy |
|---|
See our Shipping & Billing Terms for how estimated shipping is charged, and our Refund / Return Policy.
