Check-Line TI-25MX Ultrasonic Wall Thickness Gauge
$1,775.00
SKU: ELE-TI-25MX
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

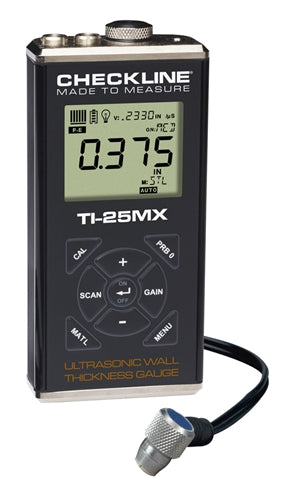

Check-Line TI-25MX Ultrasonic Wall Thickness Gauge
Complete Kit
The TI-25MX is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
Specifications
| Total Measuring Range; (Steel) | 0.025 - 36.000 inches; 0.63 - 914.4 mm; (depends on material and transducer/probe type) |
|---|---|
| Measuring Range; (Steel) | 0.025-6.000 inches; 0.60-150.0 mm; (with standard transducer T-102-3300) |
| Resolution | 0.001 inch (0.01 mm) |
| Measuring Mode | Pulse-Echo (P-E) |
| Velocity Range | 0.0120 to .7300 in/μs. 305 to 18,542 meters/sec |
| GAIN Adjustment | Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB |
| Probe (Standard) | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300 (4 ft cable) |
| Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Scan Mode | 100 Hz (100 updates/sec), Displays the lowest reading found during a scan |
| Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F); Material: -20 to 95° C (0 to 200° F); High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 64 x 131 x 32 mm (2.5" x 5.17" x 1.25") |
| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating | IP65 |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Keypad | Sealed membrane that is resistant to both water and petroleum products; Seven or eight tactile-feedback keys |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
| To Lock Settings | With gauge powered off, press and hold the "+" key while powering on the gauge; The LOCK icon will be illuminated on the Display |
| To unLock Settings | With gauge powered off, press and hold the "-" key while powering on the gauge; The LOCK icon will turn off |
| Warranty | Gauge: 5 Years; Probes: 90 Days |
| Java Demo Link | TI-25MX Demo App (Requires Java Desktop Software) |
