Electromatic

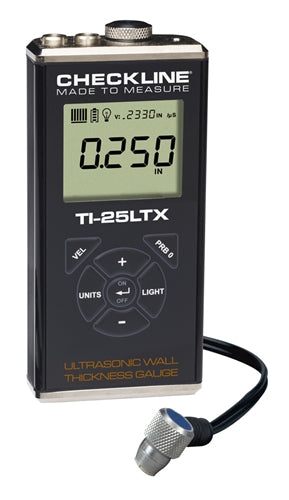

Check-Line TI-25LTX Steel Only Ultrasonic Wall Thickness Gauge
$1,095.00
SKU: ELE-TI-25LTX
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
TI-25LTX Ultrasonic Steel Only Thickness Gauge
Complete Kit
The TI-25LTX is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
Specifications
| Range in Steel | 0.040-6.000" (1.00-150.0 mm) with standard transducer (probe); Overall range of gauge is 0.025" up to 36 inches (0.63 up to 914mm); Depends on transducer |
|---|---|
| Resolution | 0.005 inch (0.05 mm) |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Velocity Range | fixed at 2330 in/μs. / 5920 meters/sec |
| Probe (Standard) | 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000 |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F); Material: -20 to 100° C (0 to 200° F); High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25") |
| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Warranty | Gauge: 5 Years; Probes: 90 Days |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Housing Rating | IP65 |
| Keypad | Sealed membrane that is resistant to both water and petroleum products; Seven or eight tactile-feedback keys |
| Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
