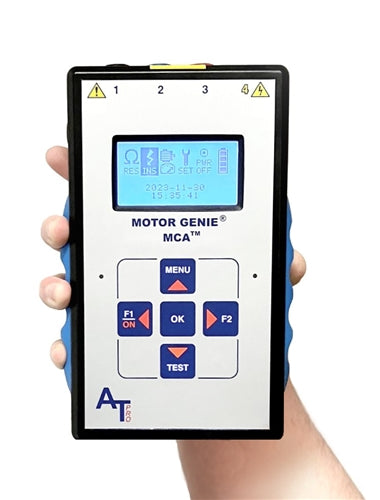

All-Test Pro Motor Genie MCA Motor Tester
MOTOR GENIE MCA
Electric Motor Analyzer for AC Squirrel Cage Motors (<100V)The most comprehensive, portable and affordable motor diagnostic tool currently on the market.
Much More Than Your Grandpa’s Megohmmeter
With its advanced capabilities, the MOTOR GENIE® MCA™ outperforms other traditional tools such as the Megohmmeter, RCL meter and other resistance meters.
In addition, the MOTOR GENIE® MCA™ includes the most diagnostic functions for a lower price than other electric motor analyzers.
The Motor Genie MCA provides the quickest and most comprehensive diagnostic assessment of your motors health at a more affordable price than any other motor analyzer on the market.
TECH SPECS
Under the hood.
Absolute Accuracy
- 0.1mΩ – 9.99 mΩ ±1% ± one digit, Max Resolution: 0.01 mΩ
- 10.0 mΩ – 99.9 mΩ ±1% ± one digit, Max Resolution: 0.1 mΩ
- 100 Ω - 500 Ω ±1.5%, ± one digit
- 501 Ω - 999 Ω ±2.5%, ± one digit
Resistance
- True 4-wire Kelvin measurement
- Thermoelectric Voltage Offset Compensation
Test Frequencies
- 50, 100, 200, 400, 800 Hz
Screen
- Graphic LCD, monochrome 128 x 64 pixels (3.1) Viewing Area – 69mm x 36.5mm
- White LED backlight
Batteries
- 2 x Li-ION cells with ≥ 2100 mAh capacity
- UL 1642, UN38.3 Certified
Relative Accuracy
- Phase to Phase ± 0.1% ± one digit
Accessories Included
- 3x Test Leads with Kelvin Clips and push-pull connectors
- 1x Test Lead with 4mm safety plug and MC Dolphin clip
- Charging adapter, Universal input type 85-260VAC, output 9VDC @ 1.7A
Safety & CE
- Safety: According to IEC 61010-1 Ed. 3.0
- EMC: Emission: EN61000-6-4
- Immunity: EN61000-6-2, EN61000-4-2, EN61000-4-3
Dimensions
- Size: 126 x 218 x 51 mm (5 x 8.6 x 2) (W x L x H)
- Weight: 0.7 kg (1.5 lb.)
The ALL-TEST PRO® MOTOR GENIE MCA is your best, most economical choice for fault detection and troubleshooting.
FREE Mobile Application for the MOTOR GENIE MCA is located on Google Play® and The Apple Store®
Contact us at (214) 238-0493 for full specifications.
